The AODocs LumApps widget lets you display AODocs documents directly in your LumApps interface.
This article is for LumApps administrators. It explains how to create a custom Lumapps connector. You must do this after installing and setting up the AODocs LumApps widget.
Automatically generated table of contents
Create a custom connector
1. As a Lumapps administrator, select the gear button and then Settings.

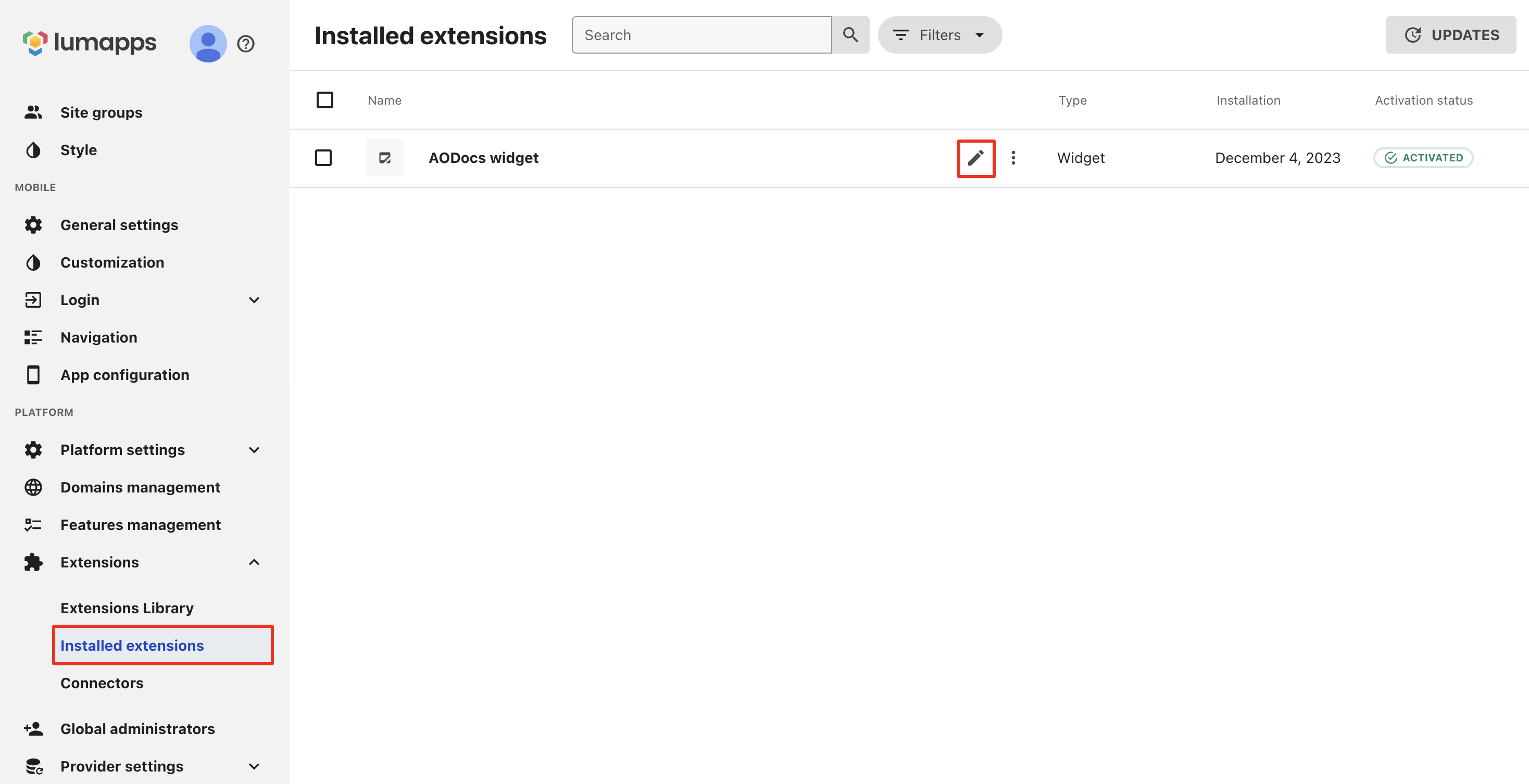

2. In the left panel select Extensions > Installed extensions.
3. Click to edit the AODocs widget.

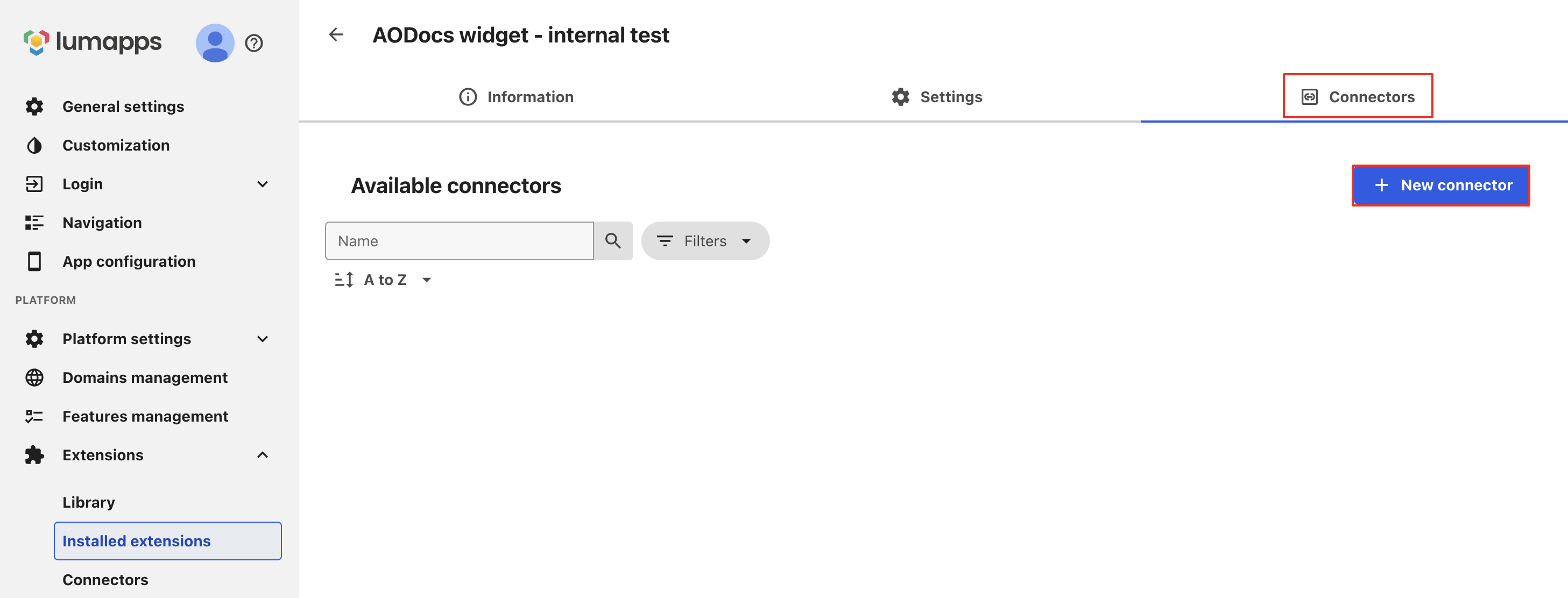

4. Select the Connectors tab and click New connector.

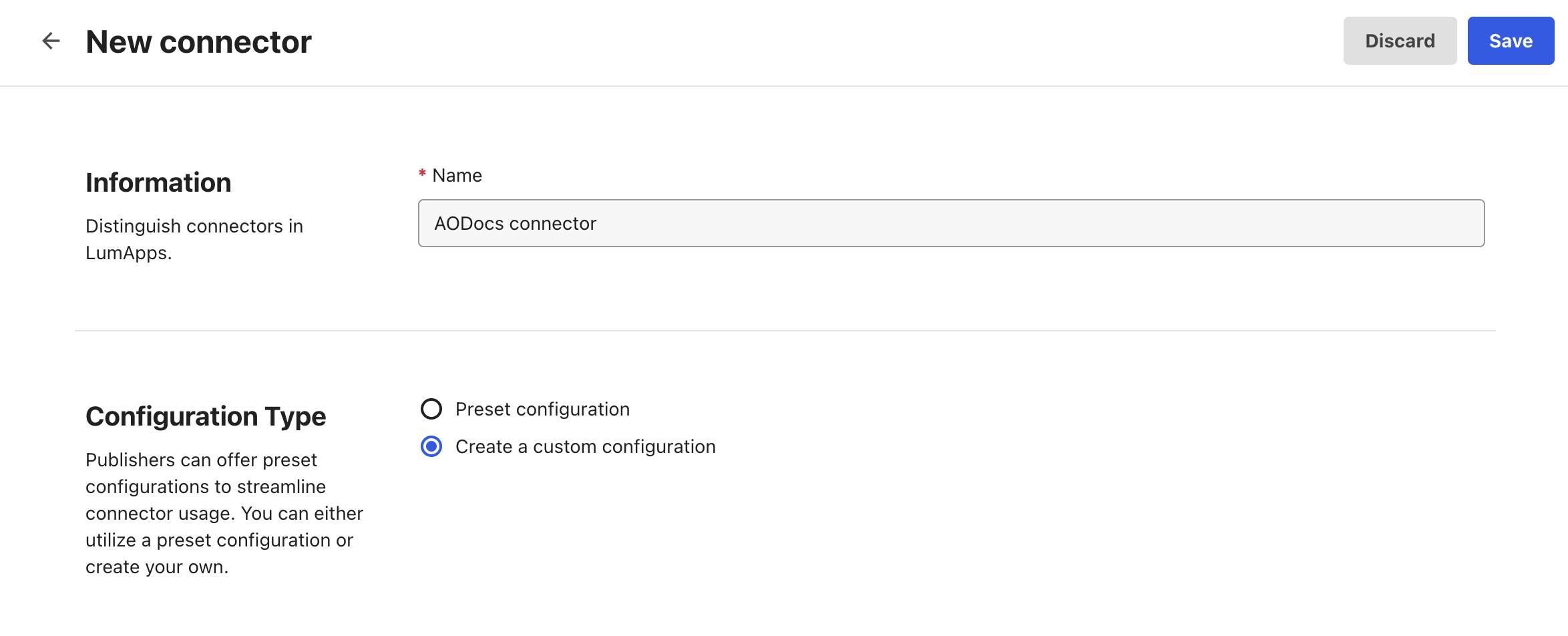

5. In the Information section, add a name for your connector.
6. In the Configuration Type section, select Create a custom configuration.

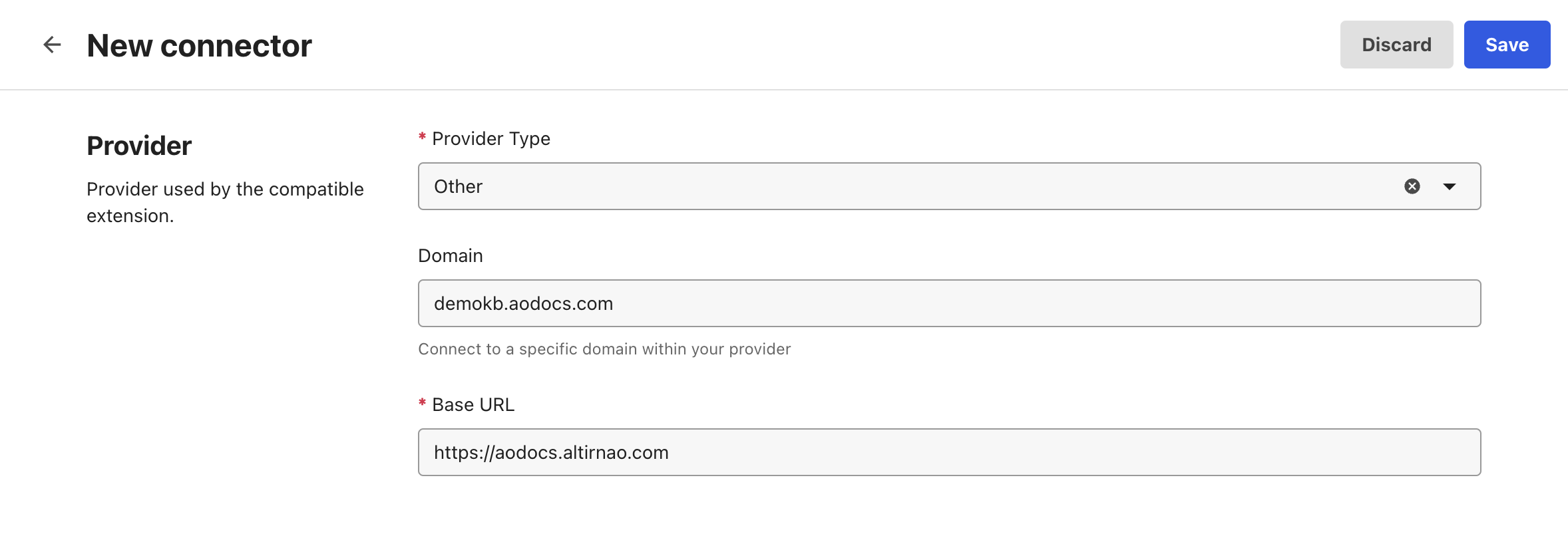

6. In the Provider section:
- select Other in the Provider Type field
- enter your AODocs instance in the Base URL field - for example:
-
https://aodocs.altirnao.com(for the US instance) -
https://eu.aodocs.app(for the EU instance)
-
Note: This can also be a dedicated instance of AODocs. Learn more: What are AODocs instances?

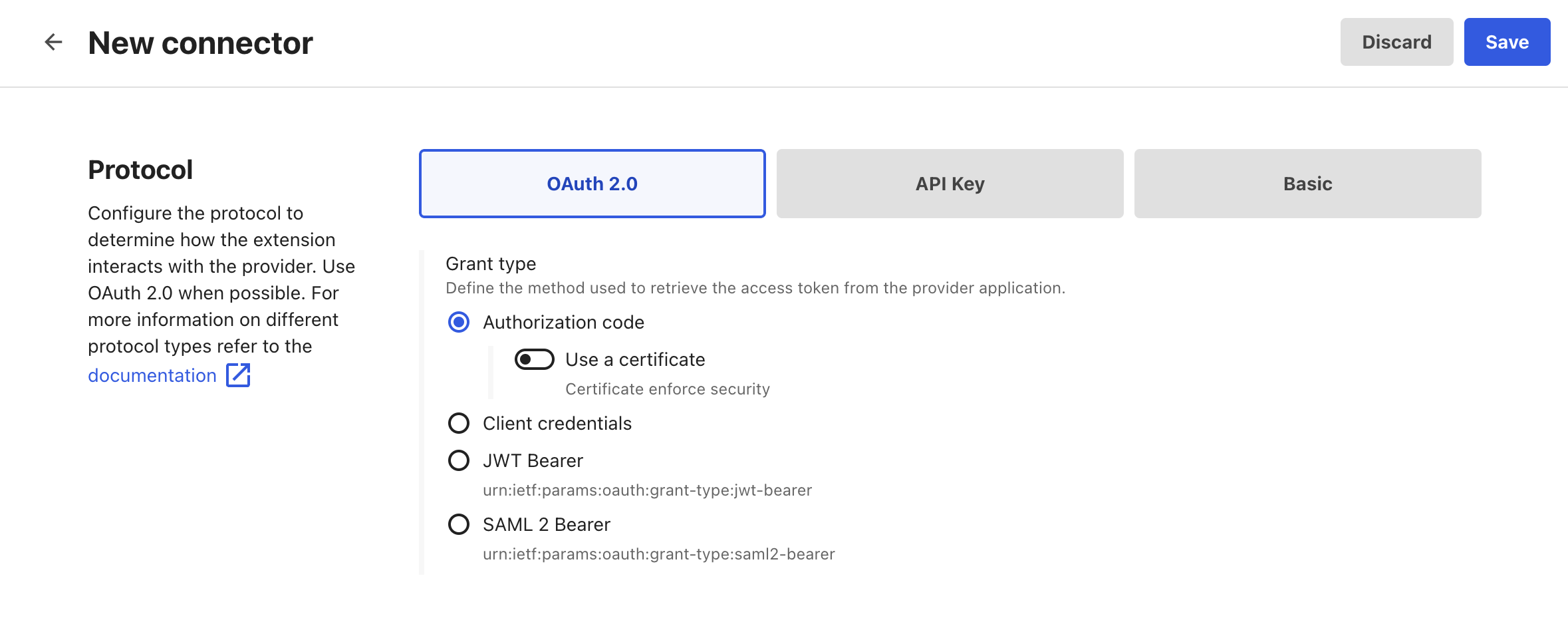

7. In the Protocol section:
- select OAuth2.0
- leave Authorization code selected under Grant type

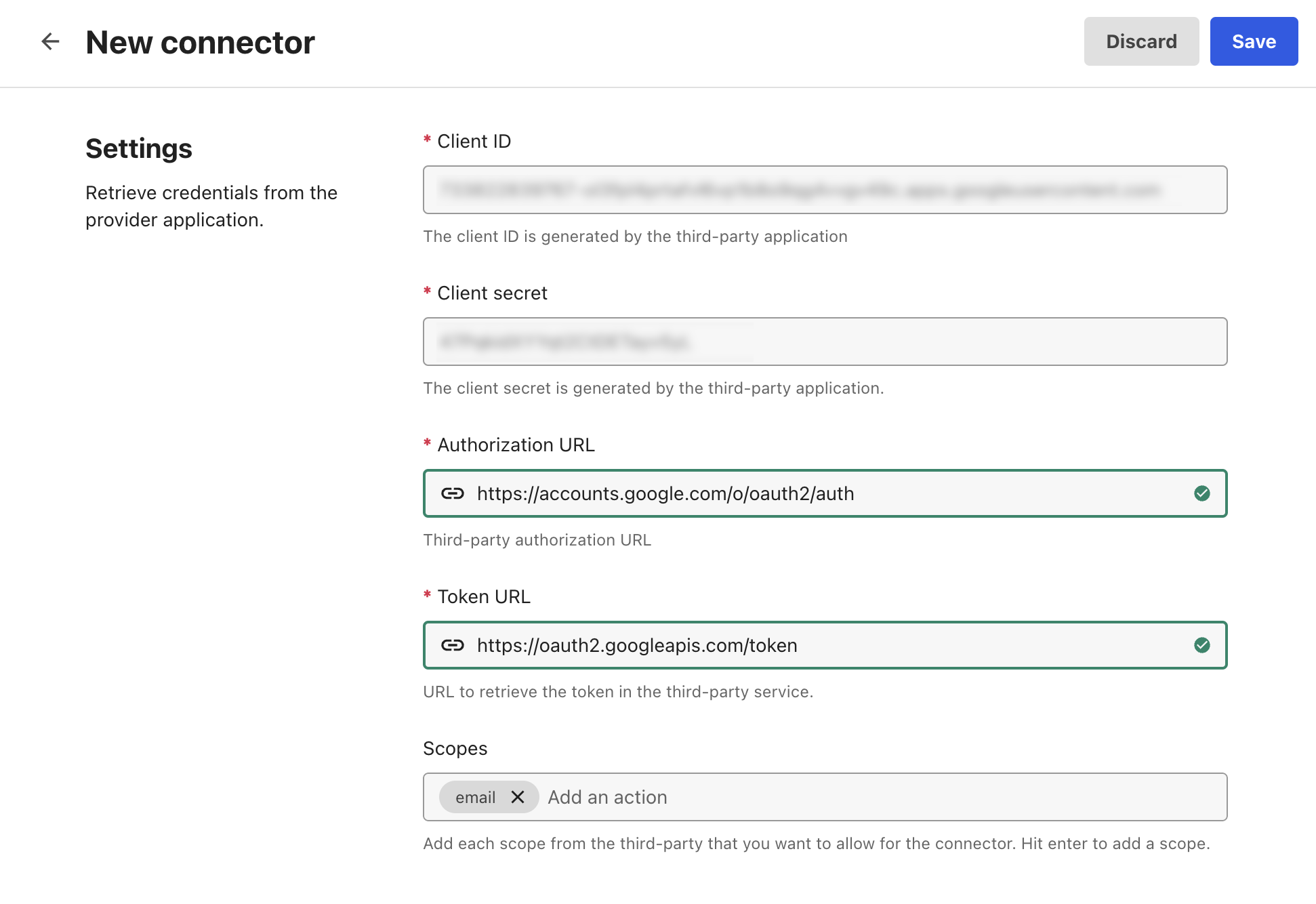

8. In the Settings section:
- enter your Client ID and Client secret
-
Authorization URL:
https://accounts.google.com/o/oauth2/auth -
Token URL:
https://oauth2.googleapis.com/token - Scopes: add email

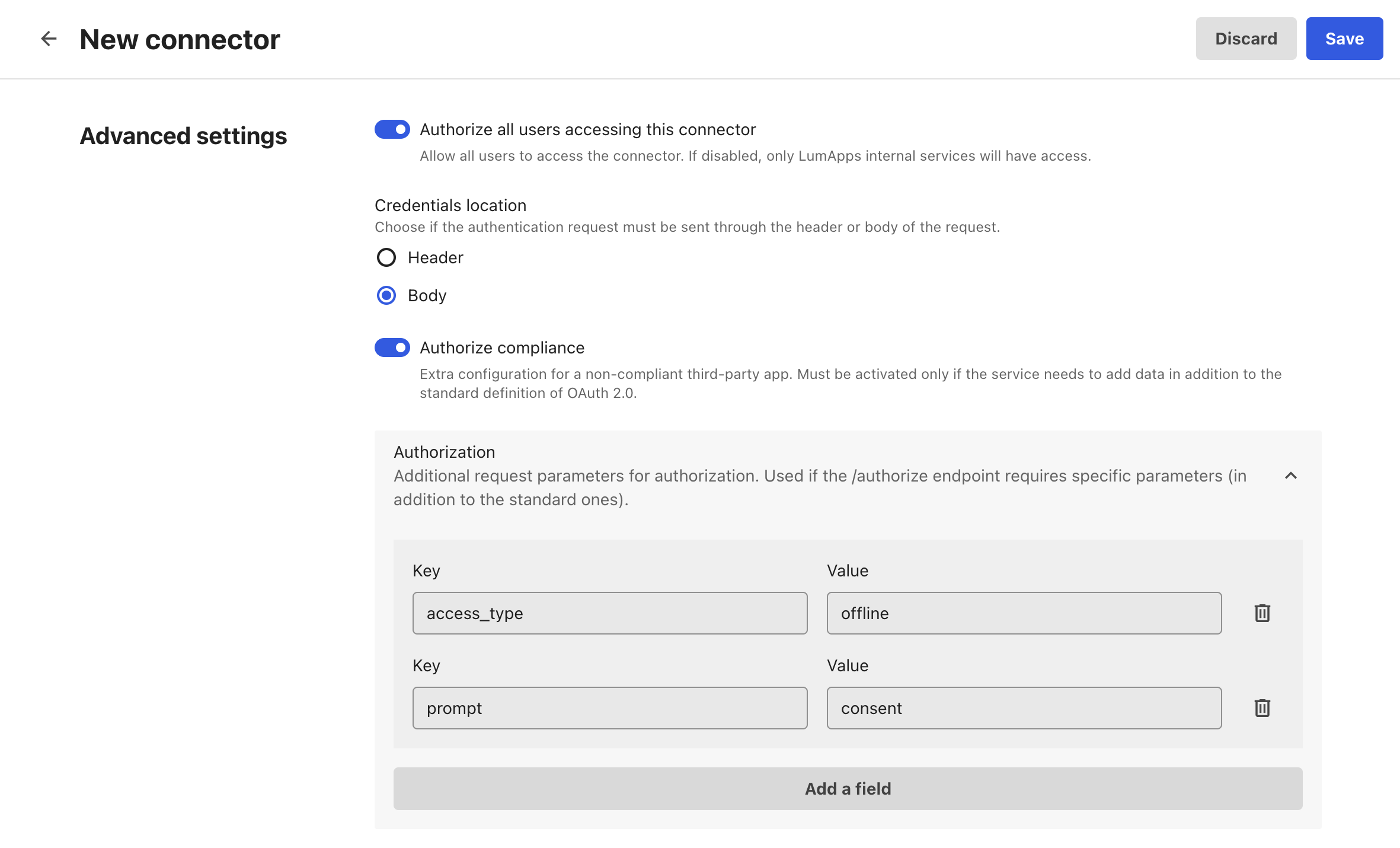

9. In the Advanced Settings section:
- make sure the switch Authorize all users accessing this connector is activated
- select Body under Credentials location
- activate the switch Authorization compliance
- in the Authorization box, add the following parameters:
| Key | Value |
| access_type | offline |
| prompt | consent |
Click Save.
Link the custom connector to the AODocs LumApps widget

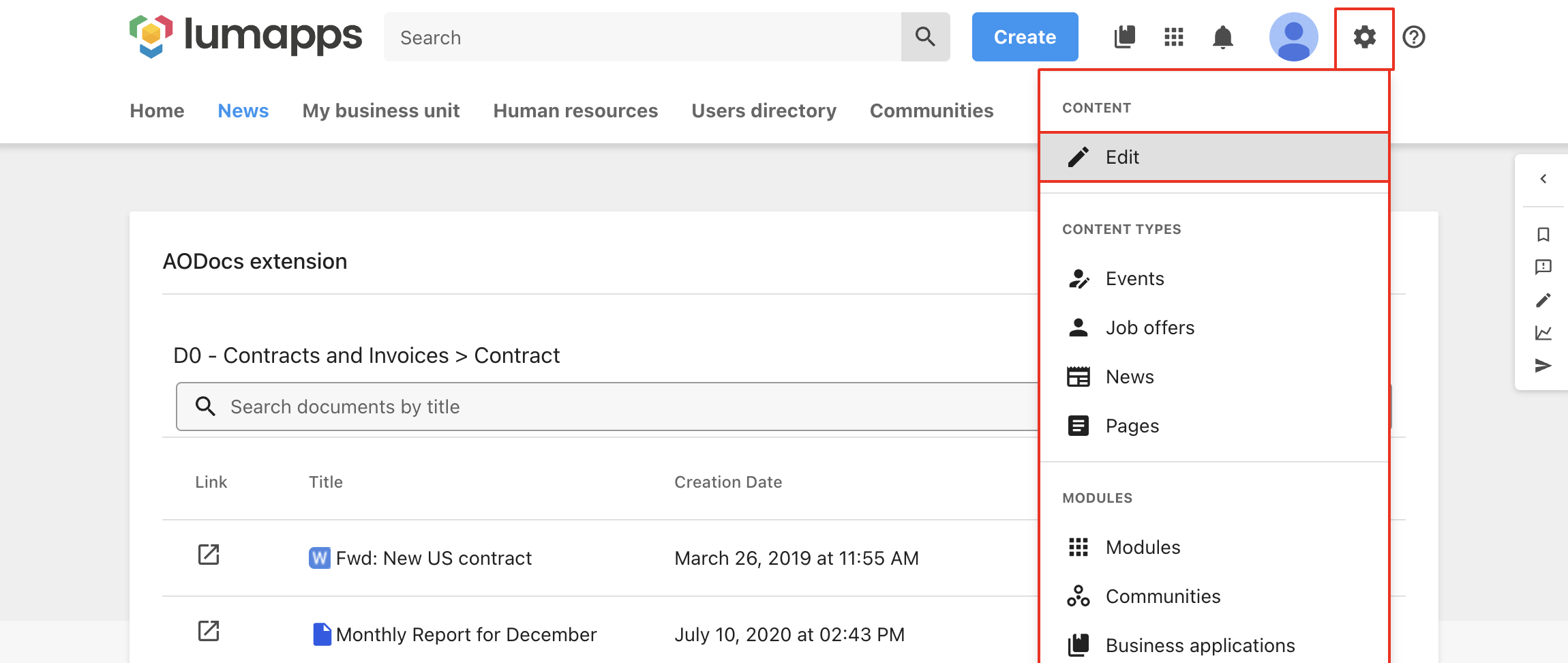

1. As a Lumapps administrator, select the gear button and then Edit.
2. Select the area where the AODocs LumApps widget is displayed.

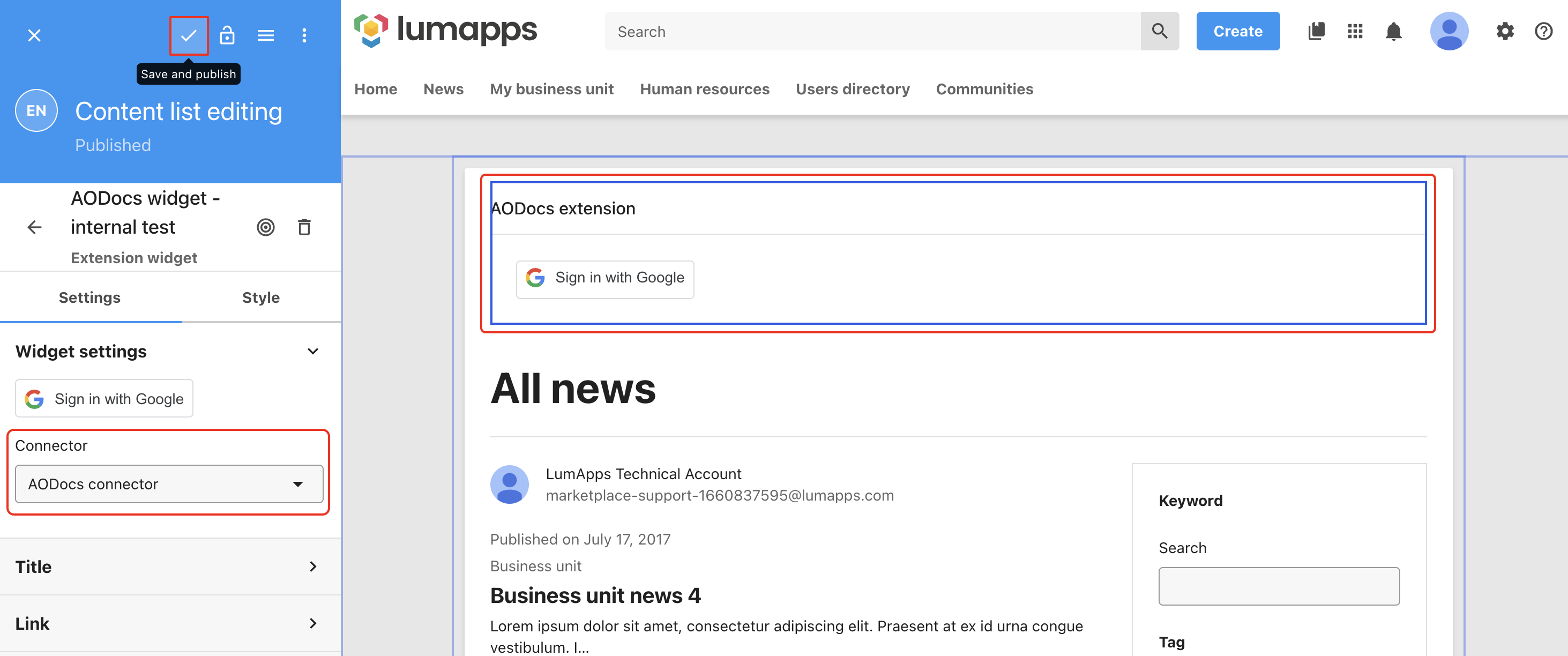

3. In the Connector drop-down list, select the custom connector you created.
4. Click Save and publish.
